VxWorks Network Performance Modeling and Queue Optimization

VxWorks Network Performance Modeling and Queue Optimization

Predictable Ethernet behavior is a core requirement for real-time embedded systems built on VxWorks. Network performance is influenced not only by link bandwidth, but also by packet arrival patterns, transmission capacity, queue depth, scheduling behavior, and the cost of packet loss or excessive buffering.

Queueing theory provides a useful mathematical framework for modeling these effects. By estimating the relationship between packet arrival rate, transmission rate, buffer capacity, and loss probability, engineers can identify a queue length that balances packet loss against link underutilization and queueing latency.

This approach is particularly useful when designing deterministic communication paths where both throughput and bounded latency matter.

📐 Why Network Modeling Matters in VxWorks

#

An Ethernet packet traversing a VxWorks networking stack can encounter several sources of delay.

Transmission delay

#

Transmission delay is determined primarily by packet size and physical link speed. For a packet of size $$ (S) $$ bits transmitted over a link with capacity $$ (C) $$ bits/s:

$$ [ T_{\text{tx}} = \frac{S}{C} ] $$

Higher-speed links reduce the serialization component, but they do not eliminate queueing or software-processing delays.

Queueing delay

#

When packets arrive faster than they can be transmitted temporarily, they accumulate in a transmit queue. A packet that cannot be transmitted during the current service interval must wait for subsequent service opportunities.

Excessive queue depth can increase latency and buffer occupancy, while an undersized queue can cause packet drops during short bursts.

The engineering objective is therefore not simply to maximize buffer capacity, but to select a queue depth that provides sufficient burst tolerance without creating unnecessary latency or resource consumption.

📊 Building an Ethernet Queue Model

#

A simplified model can treat packet arrivals as a Poisson process and packet transmission as a service process.

Define:

Symbol	Meaning
$$ (\lambda) $$	Average packet arrival rate
$$ (\mu) $$	Average packet service/transmission rate
$$ (\rho) $$	Traffic intensity, $$ (\lambda / \mu) $$
$$ (L) $$	Configured queue or buffer length
$$ (L_0) $$	Optimal queue length

For a stable queue:

$$ [ \lambda < \mu ] $$

and therefore:

$$ [ \rho = \frac{\lambda}{\mu} < 1 ] $$

The traffic intensity is an important indicator of how heavily the communication path is being utilized.

When $$ (\rho) $$ approaches 1, even relatively small bursts can produce substantial queue growth and increased waiting time.

Buffer size trade-off

#

An excessively large queue does not necessarily improve real-time performance. While it can absorb larger bursts, packets may spend more time waiting before transmission.

Conversely, an excessively small queue can reject packets during transient bursts even when the average offered load is below the link capacity.

The resulting design problem can therefore be summarized as:

$$ [ \text{Choose } L \text{ to balance packet loss, latency, and utilization.} ] $$

💰 Loss-Cost Optimization

#

A practical optimization model can assign different costs to packet drops and unused transmission capacity.

Let:

• $$ (c_1) $$ = cost associated with packet loss
• $$ (c_2) $$ = cost associated with underutilized capacity
• $$ (N_d) $$ = expected number of dropped packets
• $$ (N_p) $$ = expected underutilized or idle service opportunities

The total loss function can then be expressed as:

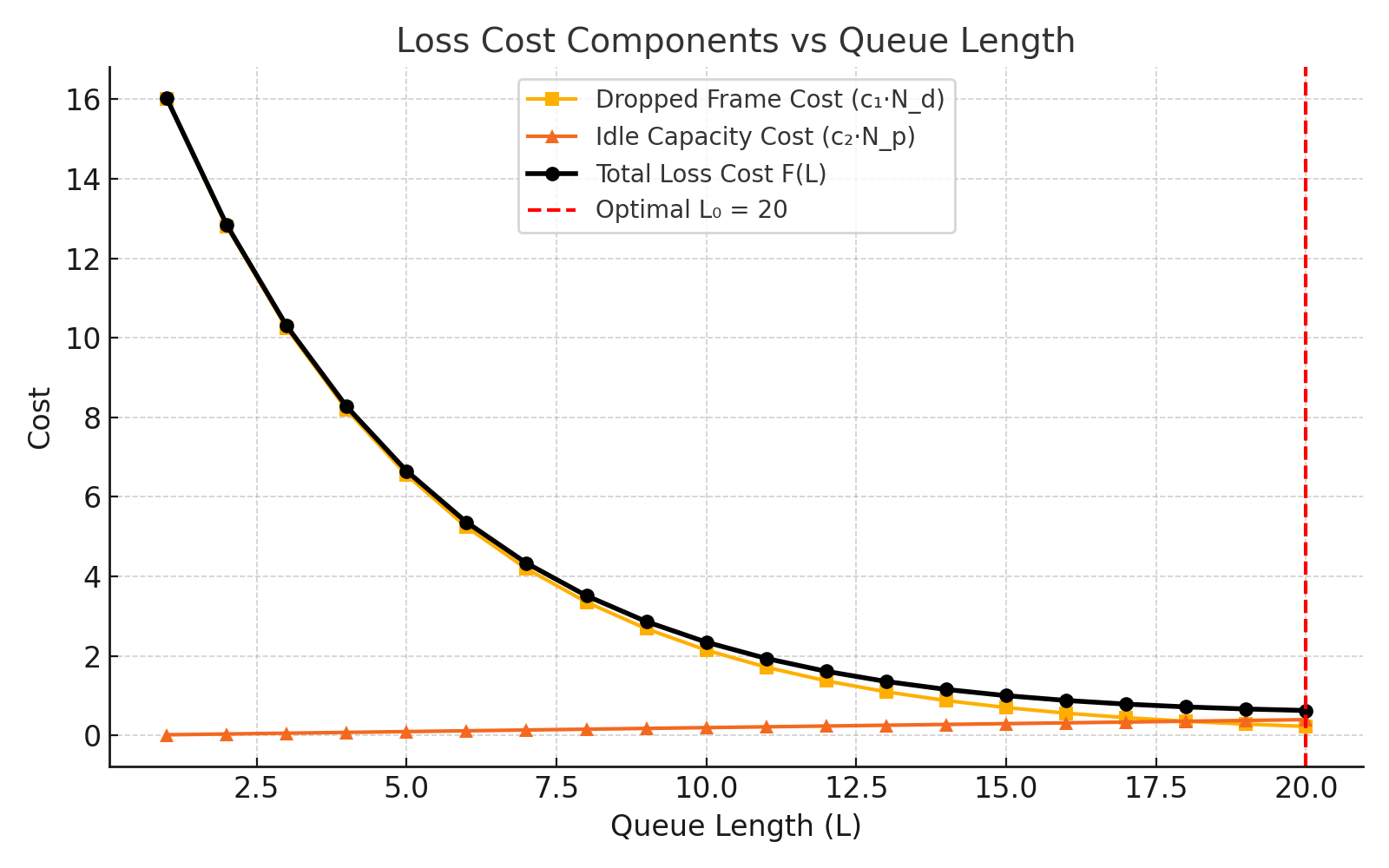

$$ [ F(L) = c_1N_d(L) + c_2N_p(L) ] $$

The optimal queue length is:

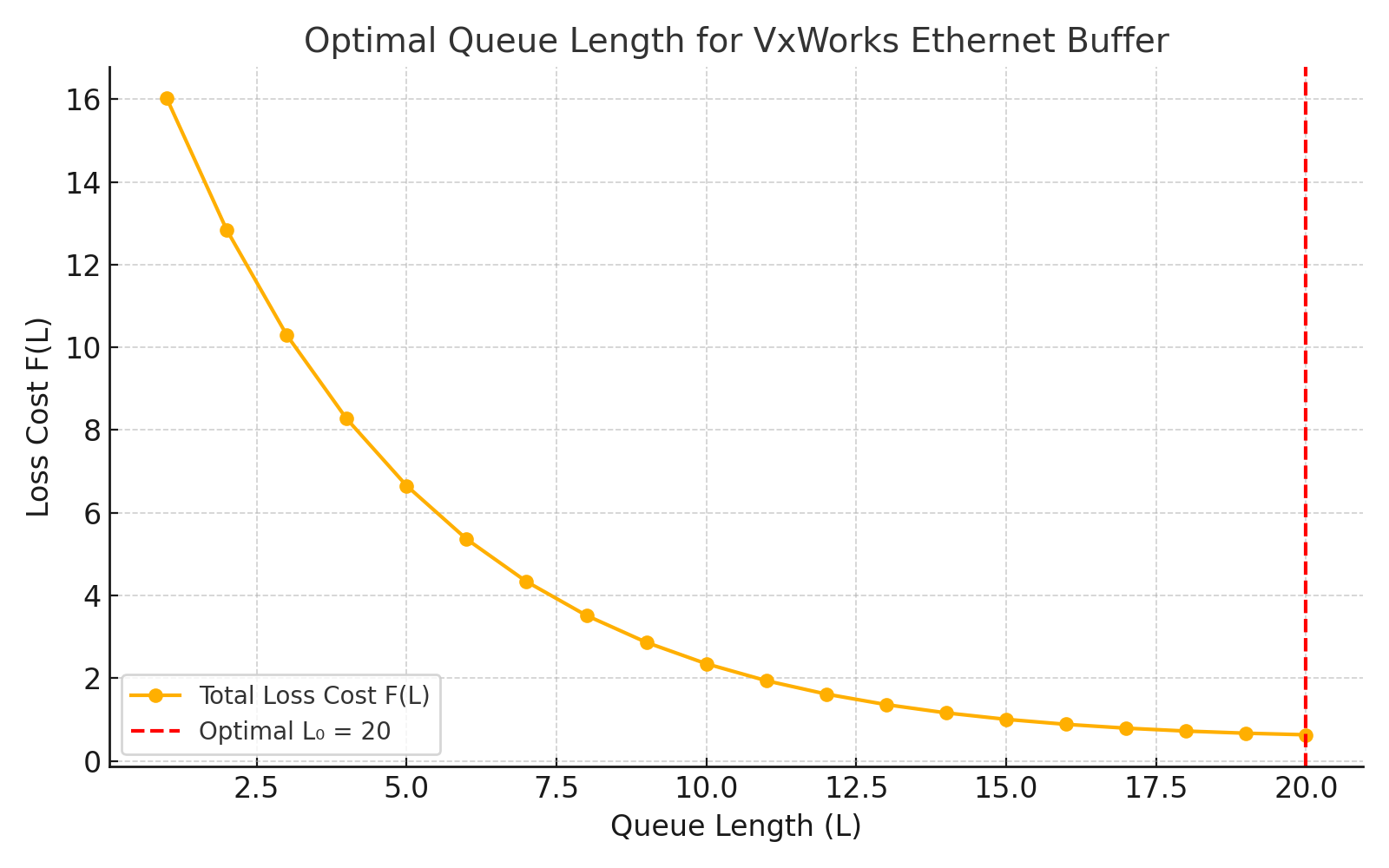

$$ [ L_0 = \arg\min_L F(L) ] $$

This formulation is useful because the optimal configuration depends on application priorities. In a command-and-control or safety-critical system, packet loss may be substantially more expensive than additional buffering, resulting in a relatively high (c_1).

For less latency-sensitive workloads, the cost assigned to queueing and resource utilization may be weighted differently.

🧮 Birth-Death and Steady-State Modeling

#

Under a simplified birth-death queue model, packet arrivals represent state increases while successful transmissions represent state decreases.

The steady-state probability of observing (n) packets in the system can be derived from the corresponding transition rates. For a basic geometric model:

$$ [ P_n = (1-\rho)\rho^n ] $$

for a stable system where $$ (\rho < 1) $$.

For a finite queue, the probability distribution is truncated by the maximum queue capacity. This makes it possible to estimate the probability of reaching the queue limit and therefore the likelihood of packet drops.

The model can then be evaluated across candidate queue sizes:

$$ [ L = 1,2,3,\ldots,L_{\max} ] $$

For each candidate value, calculate the corresponding packet-loss and idle-capacity costs and select the configuration with the minimum total cost.

📈 Interpreting the Queue-Length Trade-Off

#

The loss-cost curve generally reflects competing effects.

At small queue sizes, the system has limited burst tolerance. Packet drops become more likely, increasing the loss component associated with (c_1).

As the queue grows, packet-loss probability can decrease, but queue occupancy and waiting time increase. Eventually, additional buffer capacity provides diminishing returns.

The resulting total cost can therefore exhibit a minimum around an intermediate queue size:

$$ [ L_0 = \operatorname*{arg,min}_L F(L) ] $$

This point represents the model’s preferred operating region rather than a universal buffer-size recommendation. Real deployments should validate the model against actual packet traces and workload characteristics.

🔬 Practical VxWorks Network Tuning

#

Mathematical modeling provides a useful baseline, but real VxWorks systems introduce additional variables that a simplified queueing model may not capture directly.

Measure real traffic distributions

#

Poisson arrivals are convenient for analytical modeling, but embedded traffic is frequently periodic, bursty, or correlated.

For deterministic control traffic, a periodic or bounded-burst model may be more representative than a Poisson process. Packet traces should therefore be used to validate the assumed arrival distribution.

Separate transmit and receive buffering

#

Transmit and receive paths have different congestion characteristics. Treating them as independent resources makes it easier to tune each path according to its workload.

Receive-side buffering is particularly important when application processing can temporarily lag behind packet arrival.

Account for software processing time

#

The effective service rate is not determined solely by Ethernet line rate. Driver execution, interrupt handling, protocol processing, task scheduling, socket operations, and application-level processing all contribute to the end-to-end service time.

A more realistic service model is therefore:

$$ [ \mu = \frac{1} {T_{\text{driver}} + T_{\text{stack}} + T_{\text{application}} + T_{\text{transmission}}} ] $$

This helps explain why increasing physical link bandwidth alone may not eliminate packet loss or latency.

🌐 Network Topology and Redundancy

#

Queue optimization should be considered together with network architecture.

For critical communication paths, redundant links or network topologies can prevent a single failed interface or switch from becoming a system-wide communication failure.

Appropriate options depend on the application’s fault-tolerance requirements and protocol stack, but the general principle is to avoid relying on a single communication path for safety- or mission-critical traffic.

Additional bandwidth can also reduce utilization pressure, although bandwidth expansion should not be treated as a substitute for proper queue and workload analysis.

⏱️ Timeout and Retransmission Design

#

Network timeouts should reflect the actual end-to-end communication path rather than being selected arbitrarily.

A useful baseline is to account for:

$$ [ T_{\text{timeout}} > T_{\text{send}} + T_{\text{processing}} + T_{\text{network}} + T_{\text{ACK}} ] $$

The exact margin depends on the application’s latency budget and acceptable false-timeout rate.

For real-time systems, excessively long retransmission timeouts can increase recovery latency, while excessively short values can trigger unnecessary retransmissions during normal transient congestion.

🔀 Separating Data and Control Traffic

#

Applications with strict monitoring or acknowledgement requirements can benefit from separating high-volume data traffic from control traffic.

For example, separate sockets or logical channels can be used for:

• Application data
• Health monitoring
• Command and acknowledgement traffic
• Diagnostic information

This separation reduces the likelihood that a large data burst will delay latency-sensitive control messages.

🔄 Fast Link-Recovery Handling

#

Communication software should treat link failures and socket errors as expected runtime conditions rather than exceptional events.

A recovery strategy should typically:

1. Detect the link or socket failure.
2. Close or invalidate stale communication state.
3. Re-establish the socket or connection.
4. Restore required network configuration.
5. Resume communication.
6. Report persistent failures to the monitoring subsystem.

The recovery mechanism should also avoid uncontrolled reconnect loops that consume CPU resources or generate additional network congestion.

🧪 Validating the Model Against Real Traffic

#

The queueing model should be treated as an engineering approximation rather than a replacement for measurement.

A practical validation workflow is:

1. Capture representative packet arrival and service data.
2. Calculate average and peak packet rates.
3. Measure packet-size distributions.
4. Estimate effective service time.
5. Evaluate candidate queue sizes.
6. Measure packet loss and latency under controlled load.
7. Compare measured results with the analytical model.
8. Adjust the model when traffic behavior differs significantly from its assumptions.

This process is especially important for real-time systems because average traffic load alone can hide short bursts that dominate packet loss and latency.

🎯 Engineering Recommendations

#

For VxWorks Ethernet systems requiring predictable communication behavior:

1. Model arrival and service rates rather than sizing buffers solely from average throughput.
2. Optimize queue depth against application cost, balancing packet loss against latency and resource consumption.
3. Measure burst behavior, because average packet rate does not adequately describe real-time traffic.
4. Separate transmit and receive buffering so each path can be tuned independently.
5. Include software processing overhead when estimating effective service capacity.
6. Tune timeout and retransmission intervals using measured round-trip and processing delays.
7. Separate data and control traffic when control latency must remain bounded under heavy load.
8. Use redundant network paths for communication that must survive link or device failures.
9. Implement rapid connection recovery without creating uncontrolled retry storms.
10. Validate analytical results experimentally using representative production traffic.

✅ Conclusion

#

Queueing theory provides a practical framework for analyzing VxWorks Ethernet performance and selecting an appropriate buffer size. By modeling packet arrival rates, service capacity, queue occupancy, packet loss, and utilization costs, engineers can move from empirical buffer tuning toward a measurable optimization process.

The optimal queue length is ultimately workload-dependent. A larger buffer can improve burst tolerance but increase waiting time, while a smaller buffer can reduce latency at the cost of higher packet-drop probability.

For deterministic VxWorks networking, the strongest approach combines analytical modeling with real traffic measurements, careful timeout configuration, appropriate network redundancy, and application-level separation of data and control paths. This combination provides a more reliable foundation for achieving predictable latency, efficient link utilization, and robust packet delivery in embedded real-time systems.
