Introduction to VxWorks 7 – A Modern RTOS for the IoT and Intelligent Edge
VxWorks 7, released by Wind River in 2014, represents a major evolution in real-time operating system (RTOS) design. Built to address the growing demands of connected devices and intelligent edge computing, VxWorks 7 introduces a modular, scalable architecture that separates the core kernel from middleware, applications, and optional packages.
This modular approach allows developers to upgrade individual components without rebuilding or recertifying the entire system, significantly reducing development and maintenance costs. The design reflects decades of real-time computing experience and supports the rapidly expanding ecosystem of IoT and embedded systems.
VxWorks has historically been the operating system of choice for environments where reliability and determinism are critical. It has powered spacecraft, industrial controllers, medical devices, and defense systems for decades. VxWorks 7 builds on this legacy while addressing modern challenges such as connectivity, cybersecurity, and large-scale distributed edge systems.
The platform supports both 32-bit and 64-bit processors across multiple architectures, including Arm, Power Architecture, Intel, and RISC-V. With support for dozens of development boards and continued compatibility with many VxWorks 6.x applications, organizations can migrate to VxWorks 7 while preserving existing investments in software and board support packages.
At its core, VxWorks 7 focuses on three key pillars:
- Scalability, from small embedded devices to complex intelligent systems
- Connectivity, including modern networking stacks and deterministic networking technologies
- Security, providing strong protection for connected and mission-critical environments
These capabilities make VxWorks 7 particularly well suited for industries such as aerospace, defense, automotive, industrial automation, and healthcare.
Since its initial release, VxWorks 7 has continued to evolve, introducing support for containerized applications, artificial intelligence frameworks, and cloud integration. These enhancements position it as a powerful platform for building next-generation intelligent edge systems.
🧩 Modular Architecture and Core Innovations #

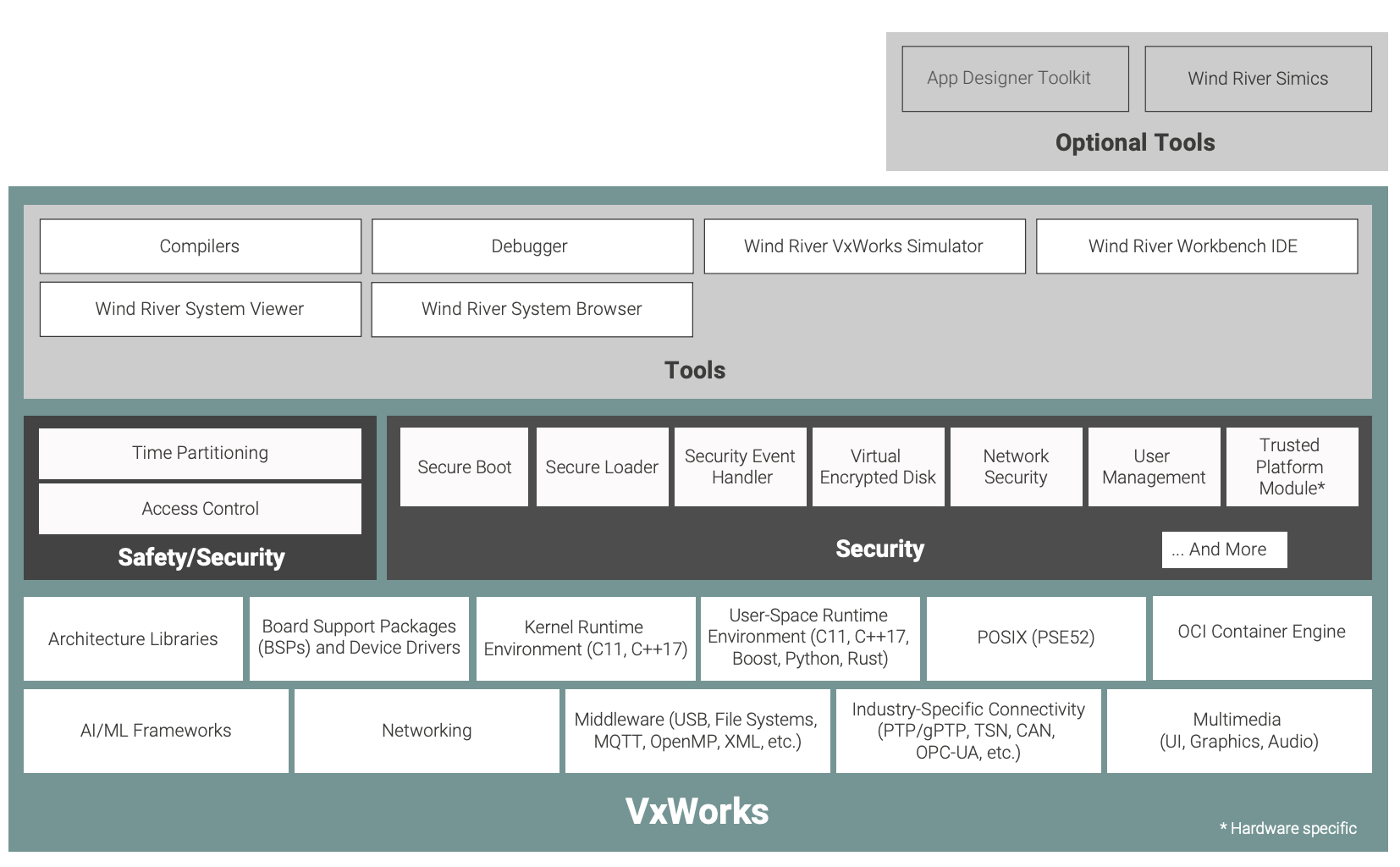

One of the most important architectural improvements in VxWorks 7 is its modular operating system design. Unlike earlier versions, where system components were more tightly coupled, VxWorks 7 separates the kernel from middleware and optional components.
This architecture enables developers to:
- Update or replace components independently
- Reduce system rebuild time
- Simplify certification processes for safety-critical applications
The kernel supports a variety of multiprocessing models, allowing developers to match system architecture with hardware capabilities. These include:
- Symmetric Multiprocessing (SMP) for shared multi-core scheduling
- Asymmetric Multiprocessing (AMP) for independently managed cores
- Bound Multiprocessing (BMP) for CPU affinity control
The scheduler is designed to deliver highly deterministic performance. Key scheduling features include:
- Priority-based preemptive scheduling
- Optional round-robin scheduling for equal-priority tasks
- Time and space partitioning for safety-critical systems
- Adaptive scheduling for mixed workloads
VxWorks 7 also maintains strong standards compliance. It conforms to the POSIX PSE52 profile and supports modern programming environments, including C11, C++17, Boost libraries, Rust, and Python.
Memory protection and virtualization readiness are additional improvements. Features such as process isolation, virtualized device interfaces, and multi-OS messaging allow VxWorks to operate in complex system architectures where multiple operating systems coexist.
🌐 Connectivity and Development Ecosystem #
Connectivity plays a central role in VxWorks 7. The platform provides comprehensive networking capabilities designed for industrial and mission-critical communication environments.
Key connectivity technologies include:
- IPv4 and IPv6 networking stacks
- Time-Sensitive Networking (TSN) for deterministic Ethernet
- Precision Time Protocol (PTP) based on IEEE 1588
- Industrial protocols such as OPC-UA
- Support for USB host, target, and OTG modes
- Socket CAN and IEEE 1394 interfaces
These features allow VxWorks systems to integrate seamlessly with modern industrial networks and distributed control systems.
File system support includes both compatibility and reliability options. Developers can use:
- dosFS, which provides FAT-compatible storage support
- HRFS (Highly Reliable File System), designed for fault tolerance and flash storage reliability
Multimedia and device support are also available through libraries such as OpenVG, OpenGL ES, and image processing frameworks. Additional capabilities include support for audio devices, input peripherals, and computer vision libraries.
Development for VxWorks 7 is typically performed using Wind River Workbench, an Eclipse-based integrated development environment. The IDE provides a full suite of tools for embedded development, including:
- Cross-compilers based on LLVM and GCC
- Integrated debugging tools
- Performance analysis utilities
- System simulation environments
Modern DevOps practices are also integrated into the platform’s development lifecycle. Extensive automated testing, continuous integration pipelines, and vulnerability monitoring ensure long-term reliability and maintainability.
🔐 Security and Functional Safety #
Security has become a fundamental requirement for connected embedded systems, and VxWorks 7 incorporates a wide range of built-in protection mechanisms.
At the platform level, the operating system includes secure boot capabilities that verify the integrity of system images and applications before execution. This ensures that only authenticated and trusted software can run on the device.
Additional security features include:
- Digitally signed application loading
- Secure storage and encrypted file containers
- Kernel hardening mechanisms such as non-executable memory pages
- Stack protection and memory safety mechanisms
- Kernel Page Table Isolation (KPTI) for advanced memory protection
Cryptographic capabilities are provided through OpenSSL integration, supporting modern encryption standards and secure communication protocols such as TLS and SSH.
Hardware-based security technologies are also supported. These include integration with Arm TrustZone environments, trusted platform modules (TPM 2.0), and trusted execution environments.
For industrial cybersecurity compliance, VxWorks 7 has been validated against recognized security standards such as IEC 62443.
In addition to security, VxWorks is well known for its support of functional safety certification. The platform can be used in systems requiring compliance with standards such as:
- DO-178C for aerospace systems
- IEC 61508 for industrial safety
- ISO 26262 for automotive safety
- IEC 62304 for medical devices
Certification evidence packages and documentation are available to help developers streamline the certification process for safety-critical products.
🚀 Real-World Applications and Industry Adoption #
VxWorks 7 is widely deployed across industries where reliability, determinism, and safety are essential.
In the aerospace and defense sector, the platform supports avionics systems, unmanned aircraft, satellite systems, and flight-critical controllers. Many major aerospace manufacturers rely on VxWorks for systems requiring strict safety certification and predictable real-time performance.
Industrial automation is another major application area. Robotics systems, manufacturing equipment, and industrial control platforms use VxWorks to achieve deterministic operation and reliable communication across complex factory networks.
In the automotive sector, VxWorks contributes to the development of software-defined vehicles, advanced driver assistance systems, and autonomous platforms. The operating system’s support for ISO 26262 safety certification makes it suitable for safety-critical vehicle electronics.
Medical device manufacturers also benefit from the platform’s reliability and certification capabilities. Applications range from diagnostic equipment to radiation therapy systems and patient monitoring platforms.
With the growing importance of edge computing, VxWorks 7 is increasingly used in systems that combine real-time control with advanced analytics and artificial intelligence. Its support for containerized workloads, cloud connectivity, and AI frameworks enables developers to build intelligent edge devices capable of processing data locally while integrating with cloud infrastructure.
Across aerospace, industrial automation, transportation, and healthcare, VxWorks 7 continues to power mission-critical systems that demand the highest levels of reliability and real-time performance.
